Check out the all new Br V2!

If you're looking for the original Br available now, head over to SparkFun.

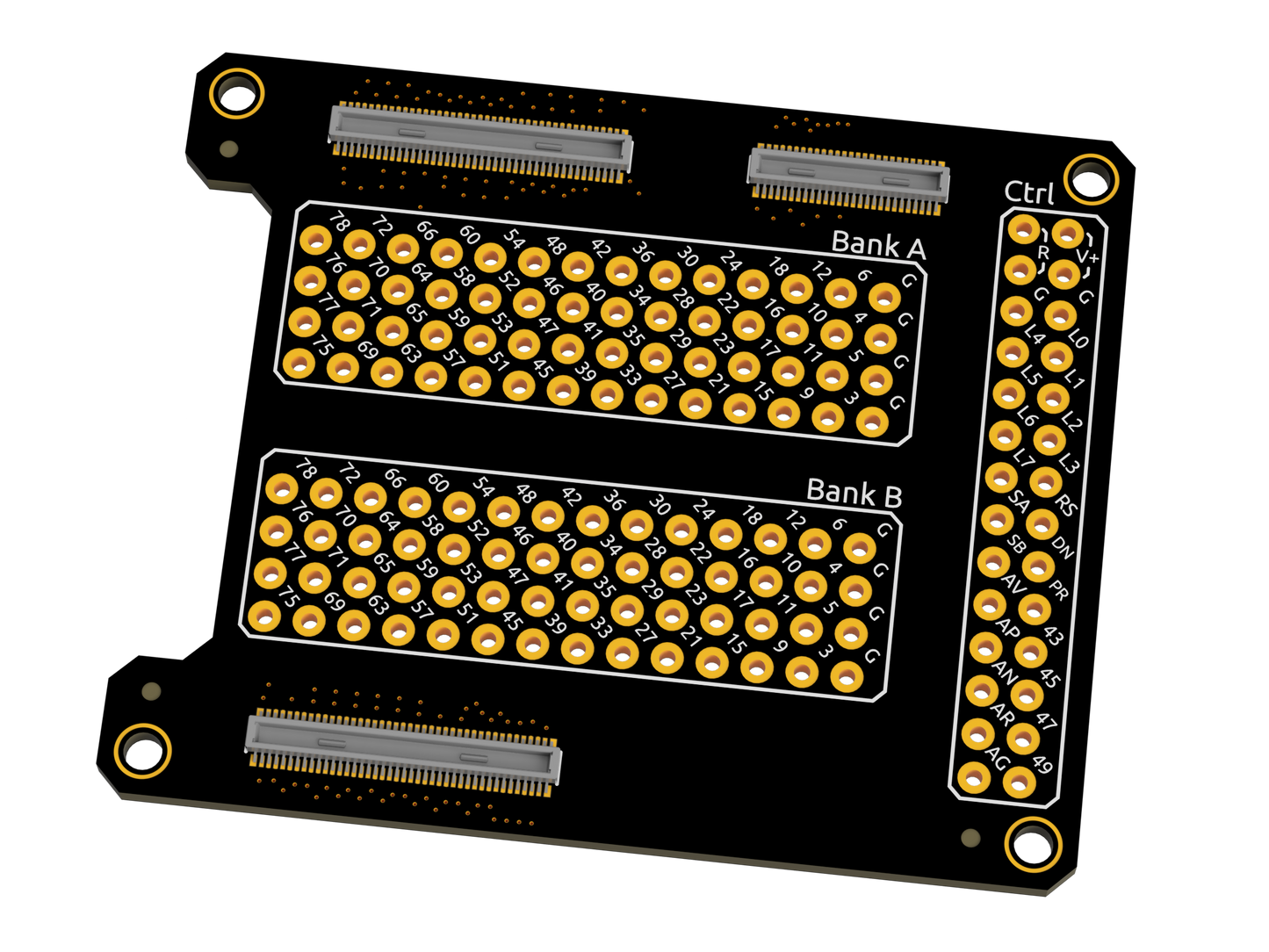

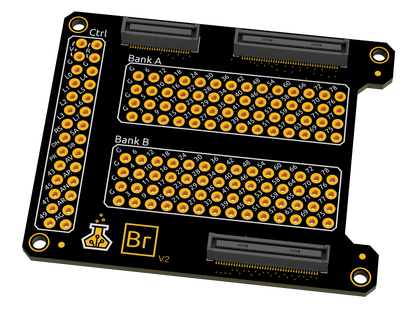

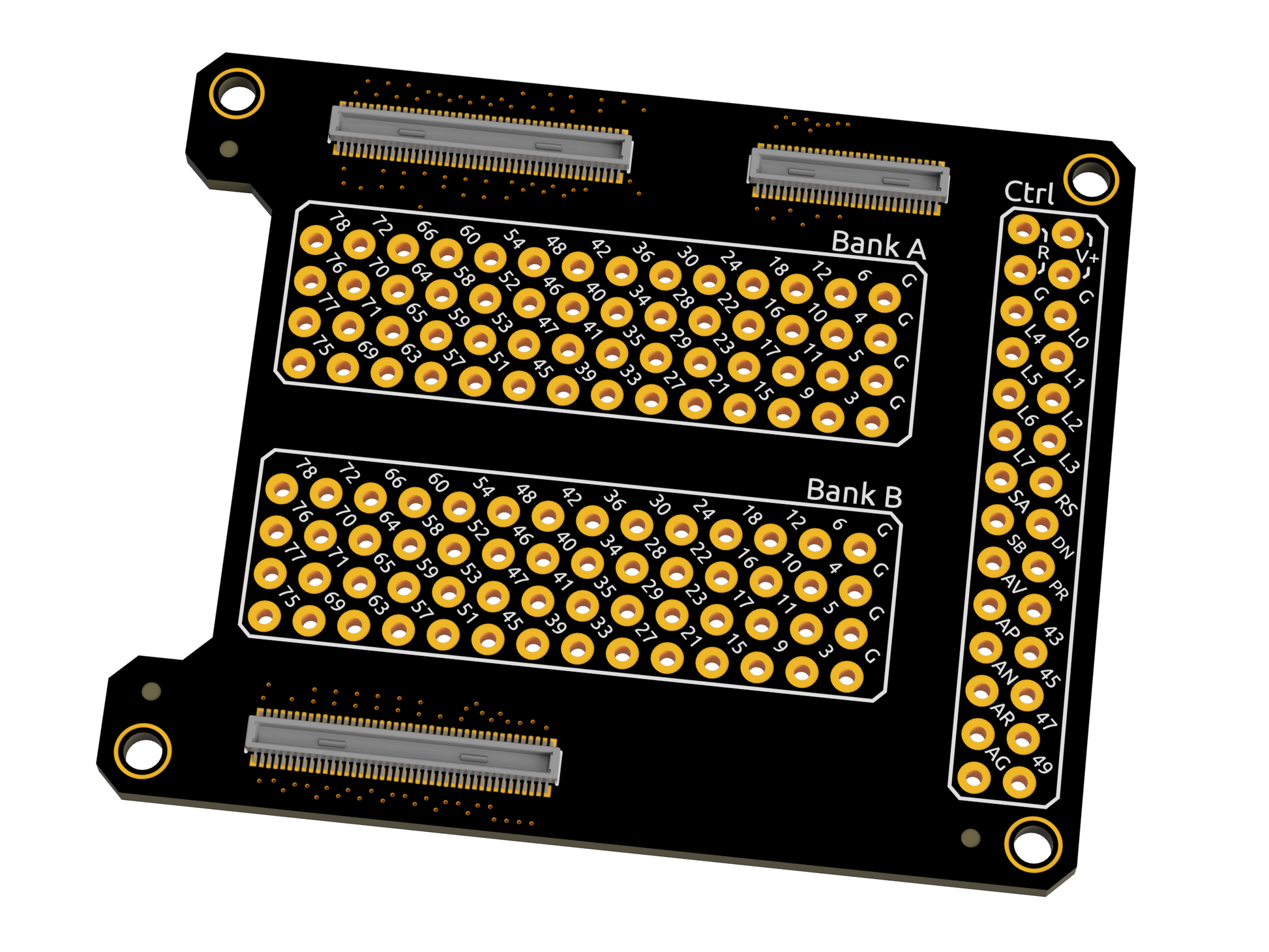

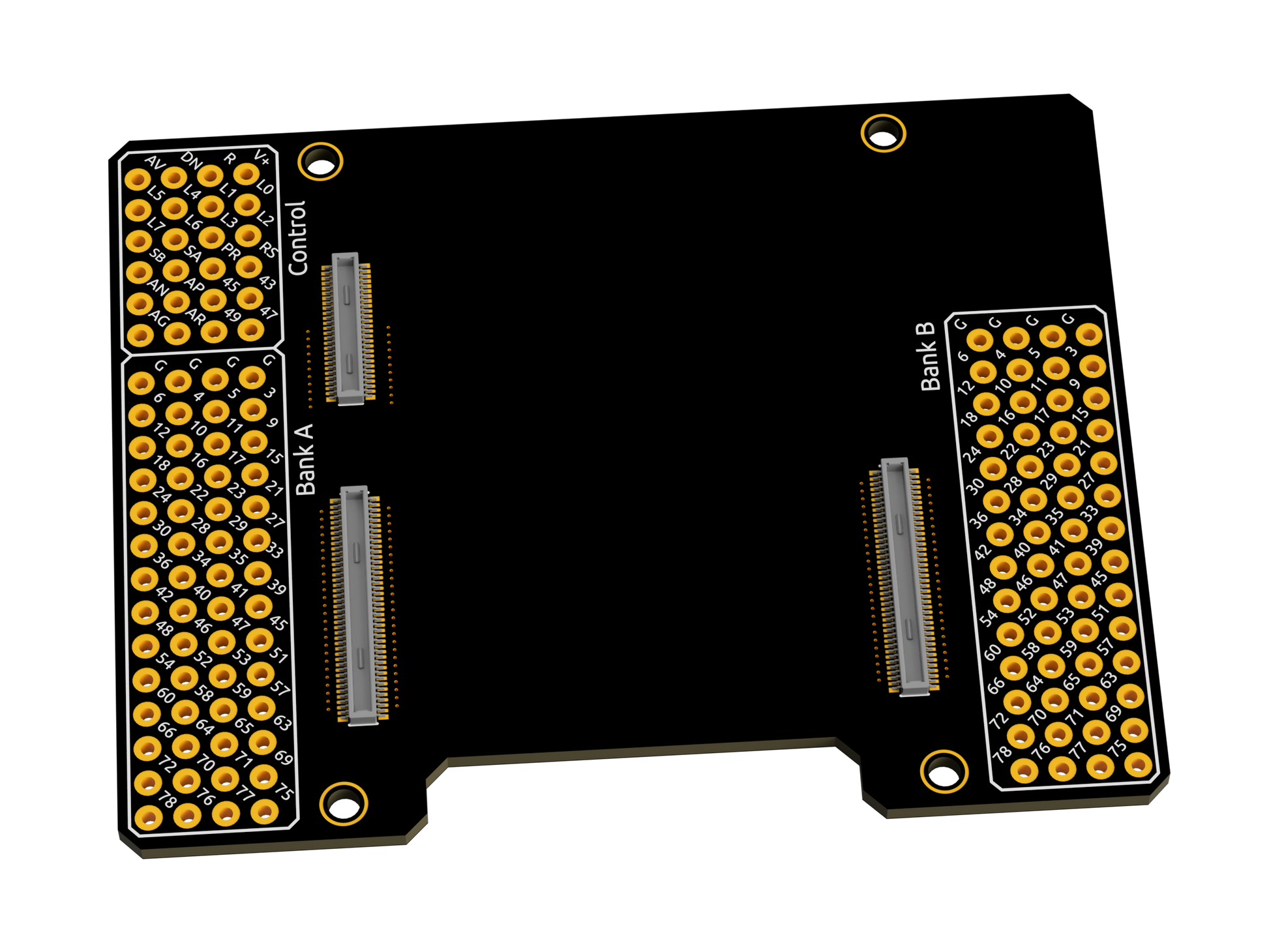

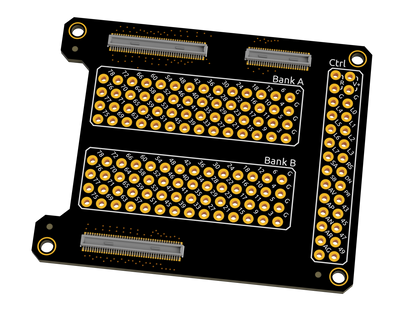

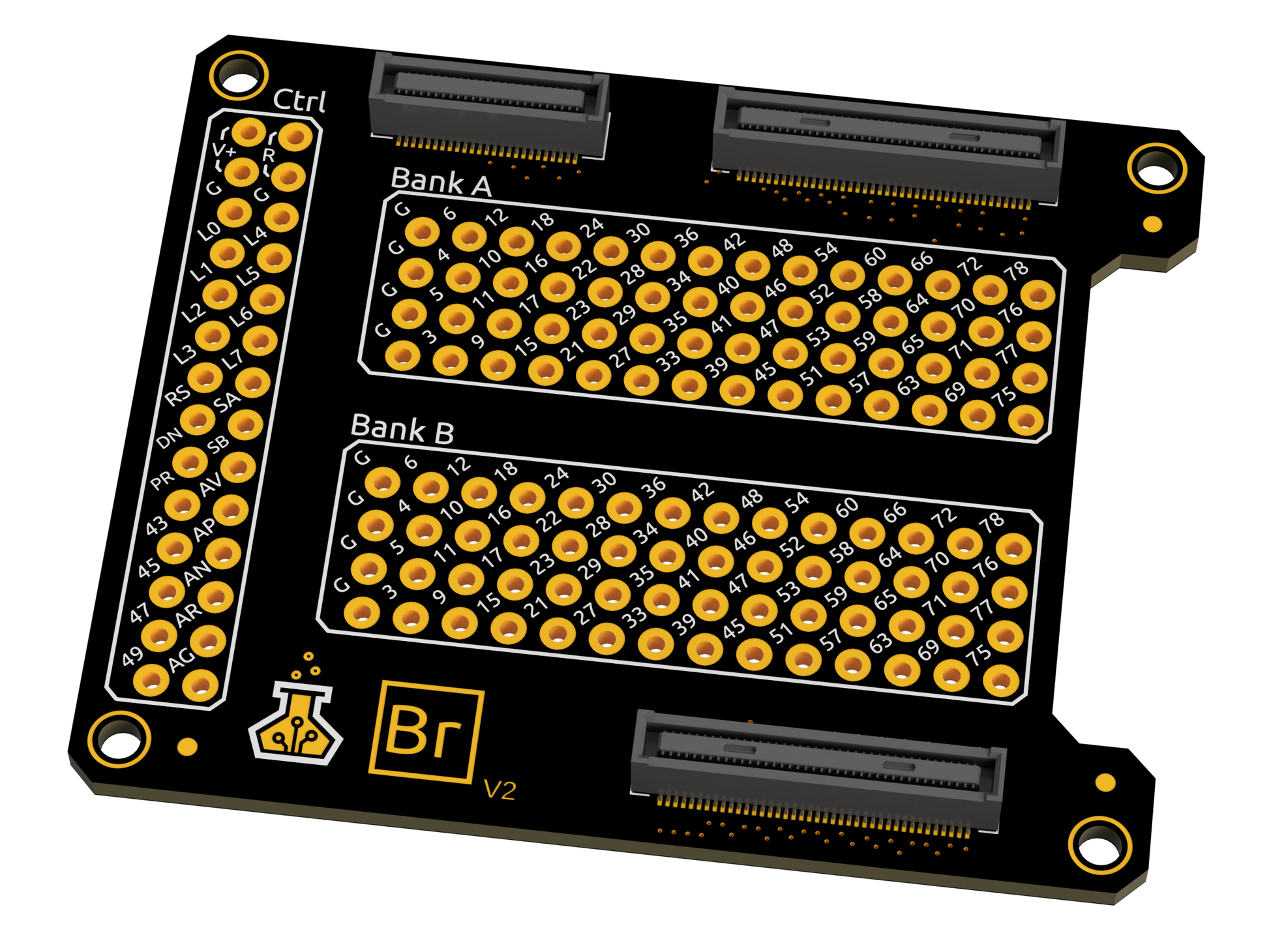

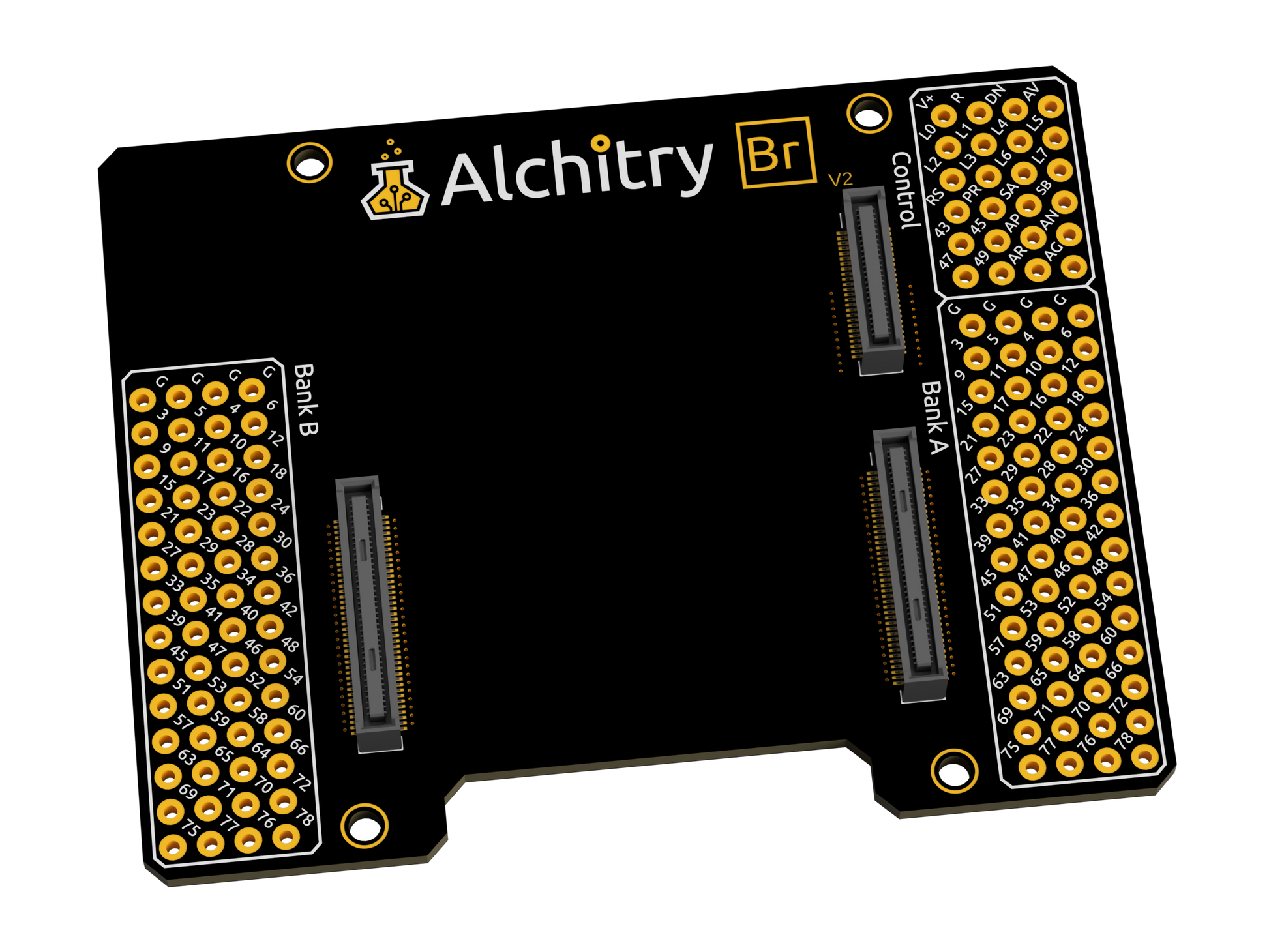

This board breaks out all the signal pins on the Alchitry headers to 0.1" easy to solder holes.

It's available with or without top headers to save some money if you don't need to stack boards on top.

Development Stage

• Design (schematic creation and PCB layout)
• Prototype Build (part sourcing and ordering of initial prototype)
• Prototype Evaluation (prototype is in hand, design is being tested)
• Part Sourcing
• Initial Production Run

Documents

• Schematic (Standard)
• Schematic (Wide)
• 3D Model (Standard, STEP)
• 3D Model (Wide, STEP)
