Keep your board extra cool with the Alchitry Fn V2!

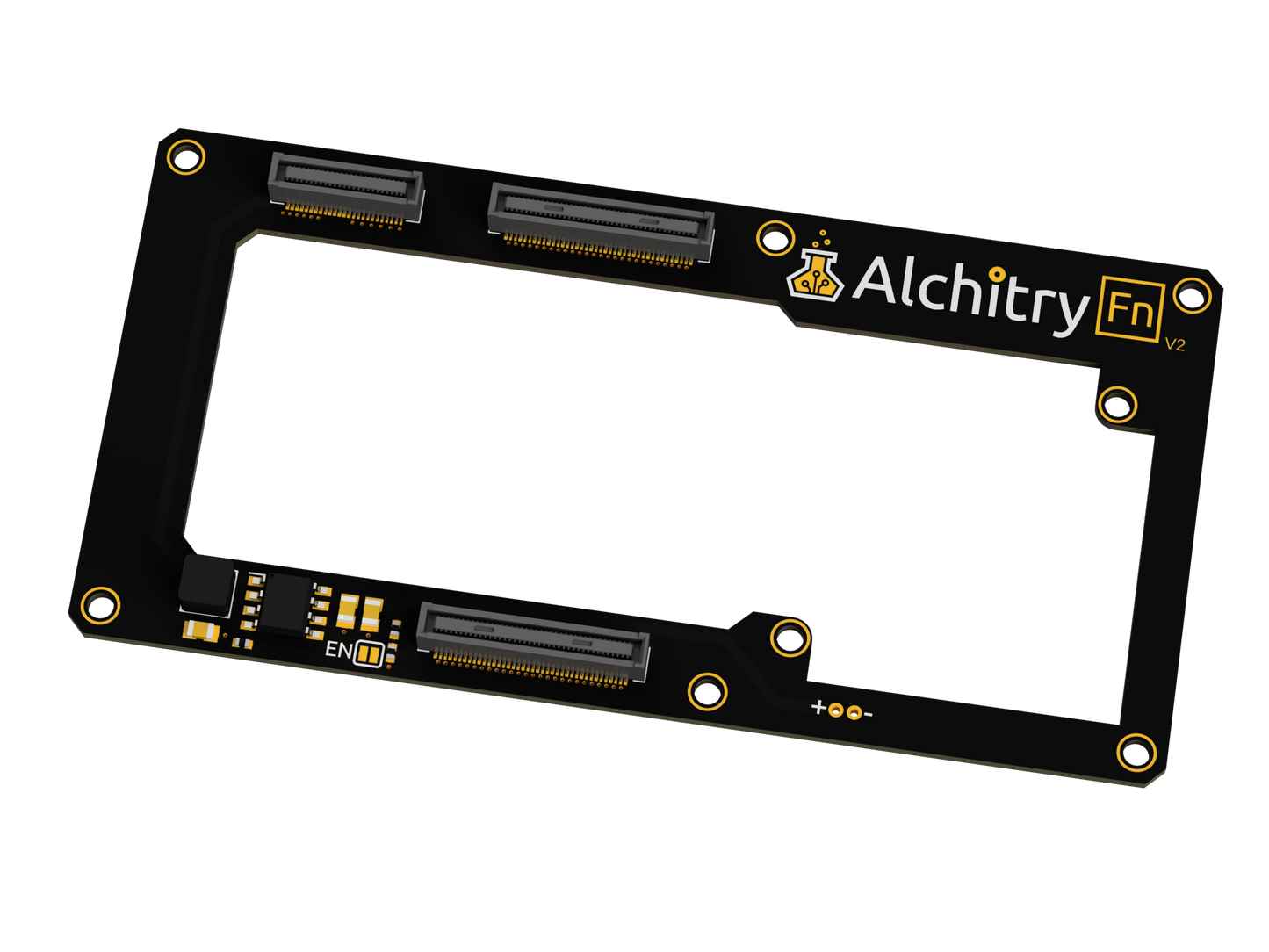

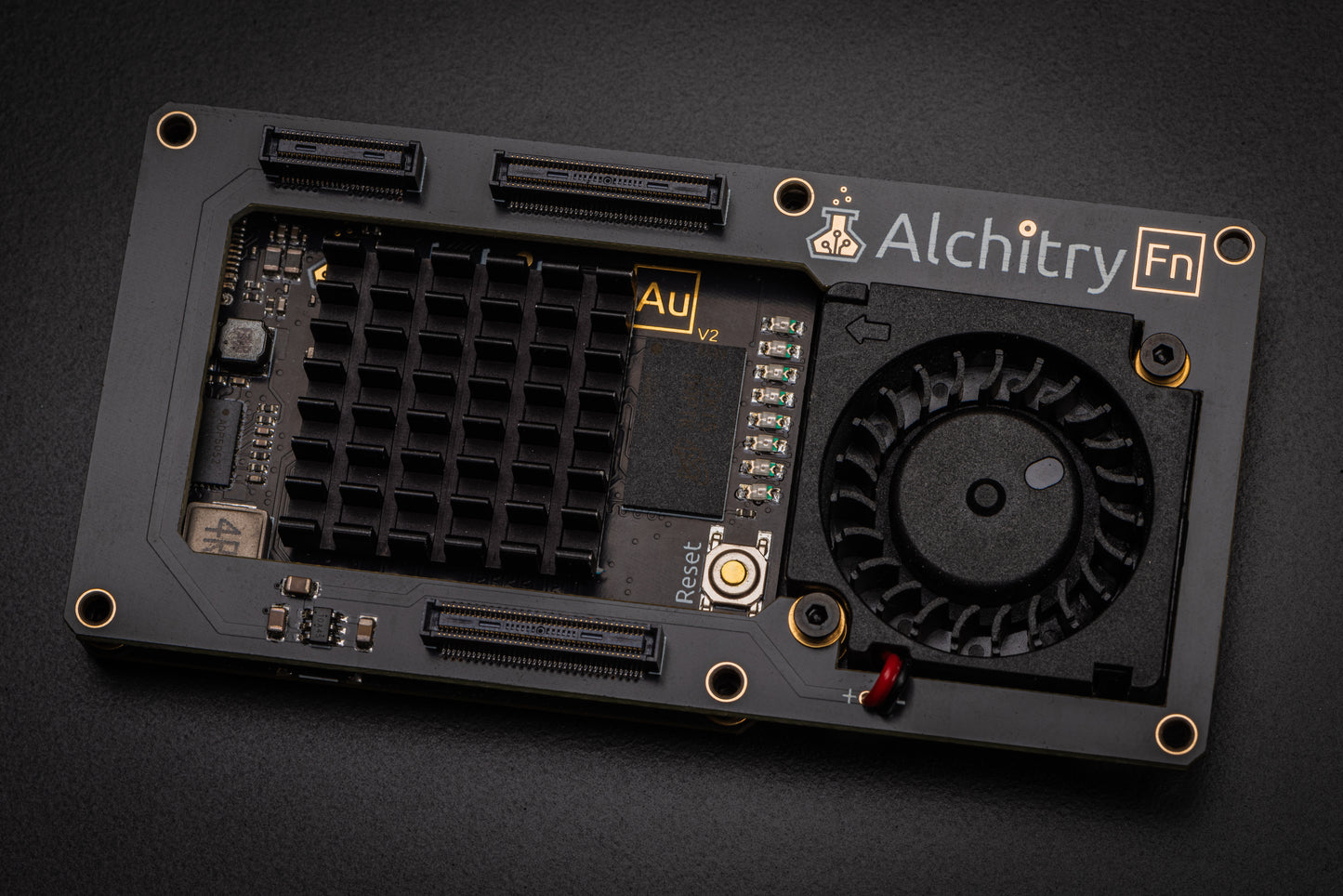

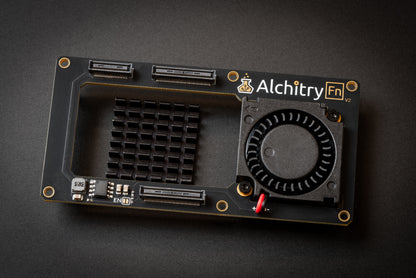

This board features a 3x3x1cm blower style fan that forces fresh cool air over the FPGA. It also comes with an oversized 25x25x5mm heatsink to attach to the FPGA.

There is a solder jumper that can be closed to allow control over the fan via pin B36.

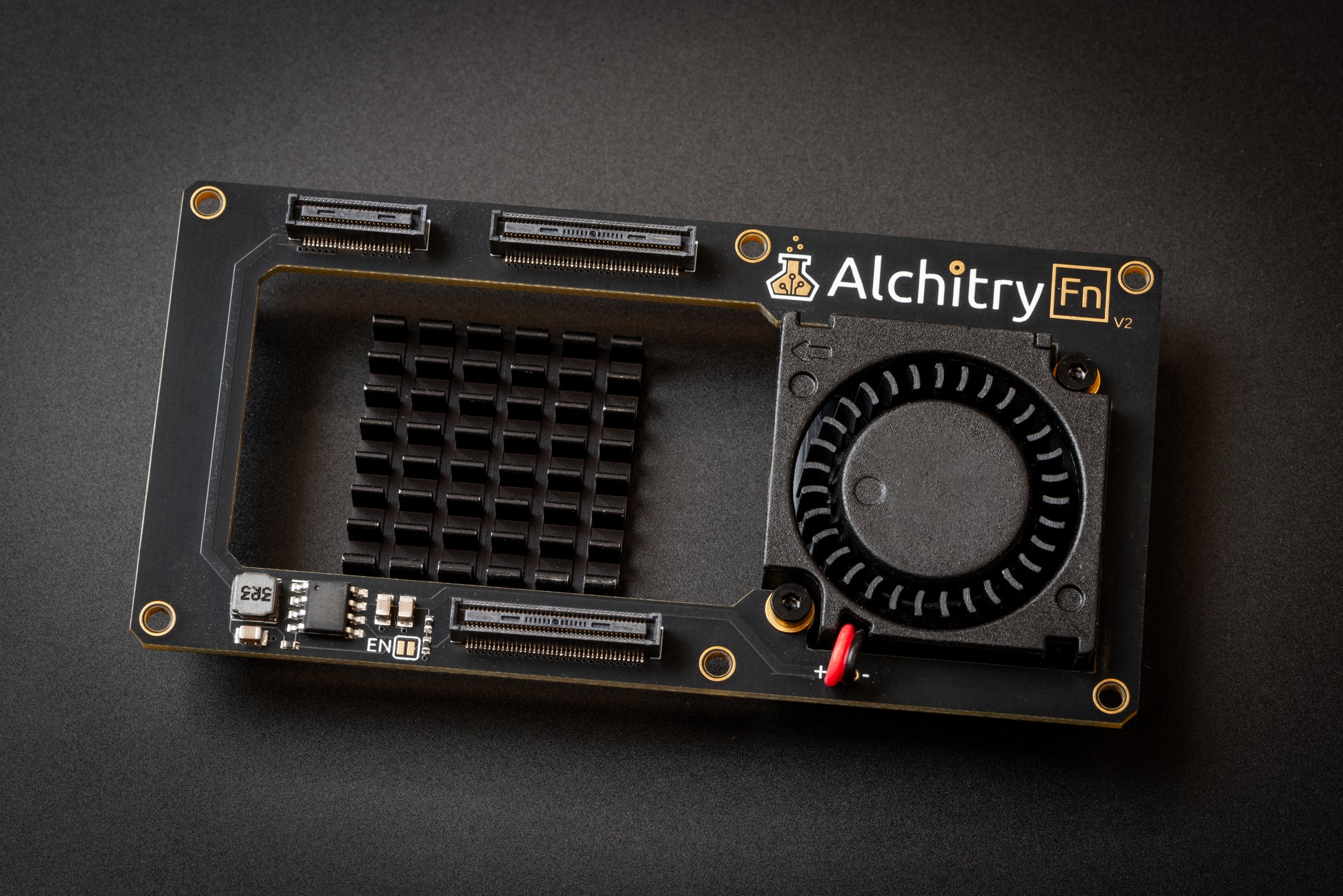

The product picture is of the prototype. The boost converter was changed for the production run.

The fan consumes ~550mA on the 3.3V rail (~1.75W).

Documents

• Schematic
• 3D Model (STEP)
