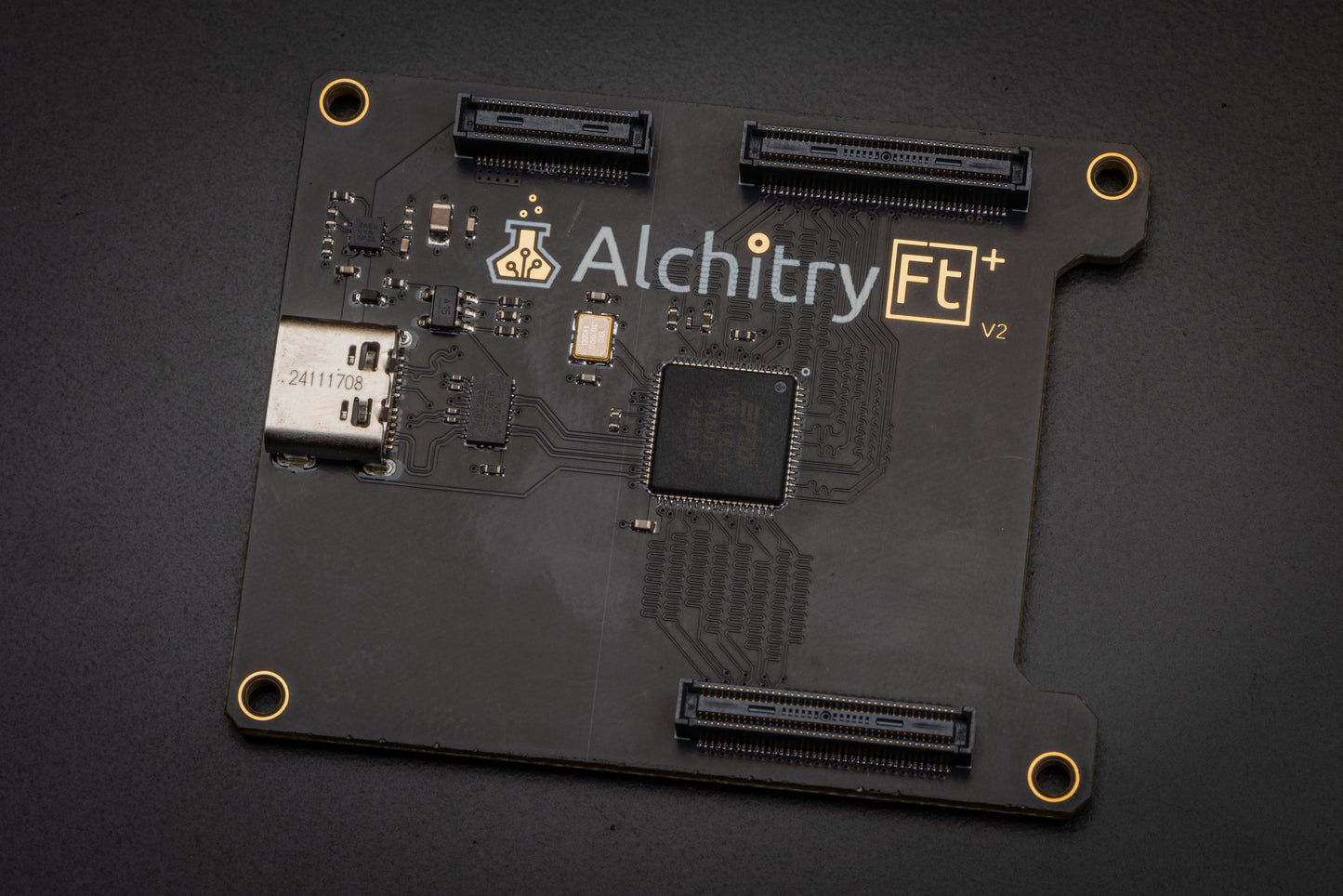

Need to get a lot of data in or out of your design? Look no further than the Ft and Ft+!

If you're looking for the original Ft, head over to SparkFun.

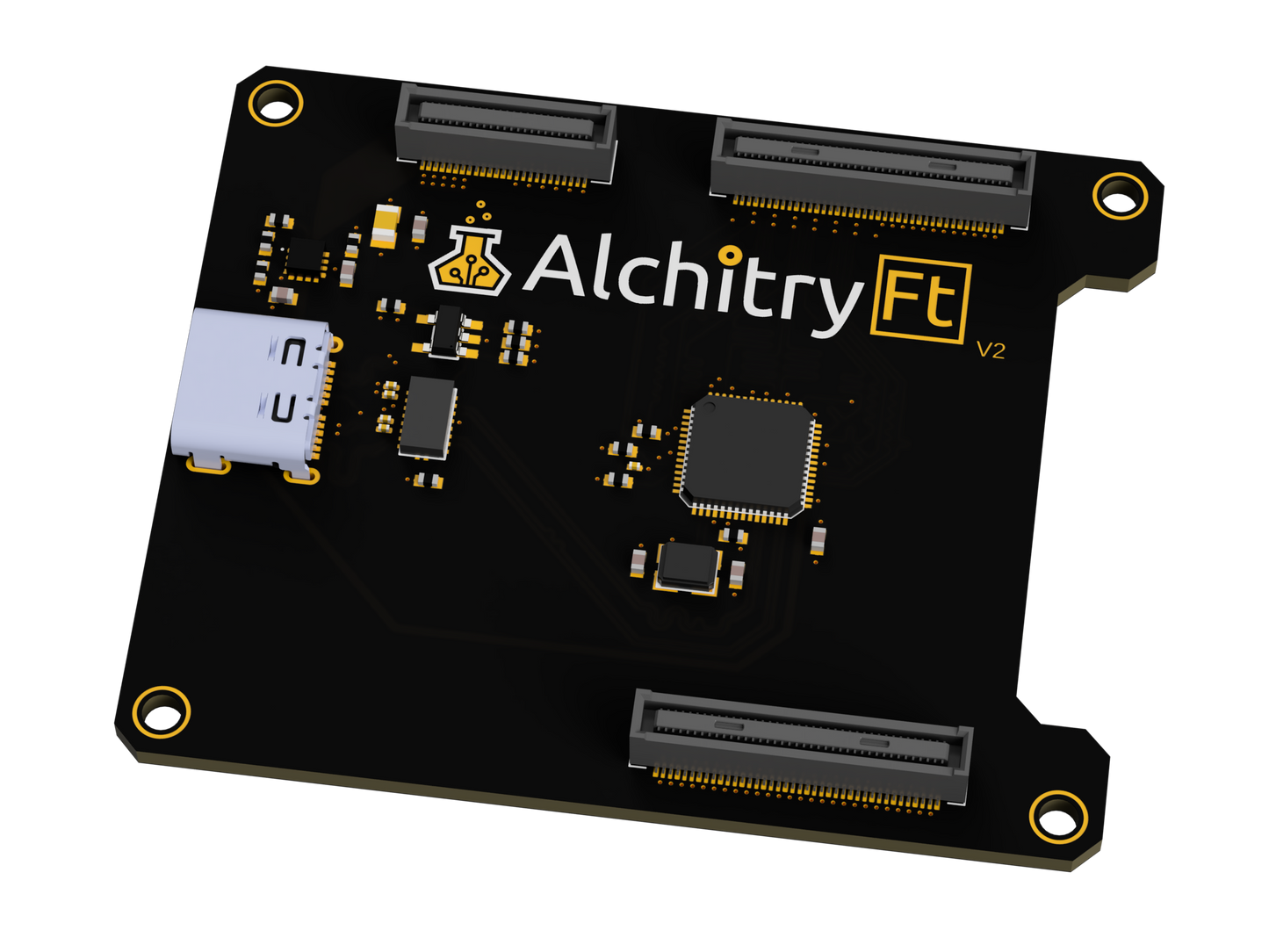

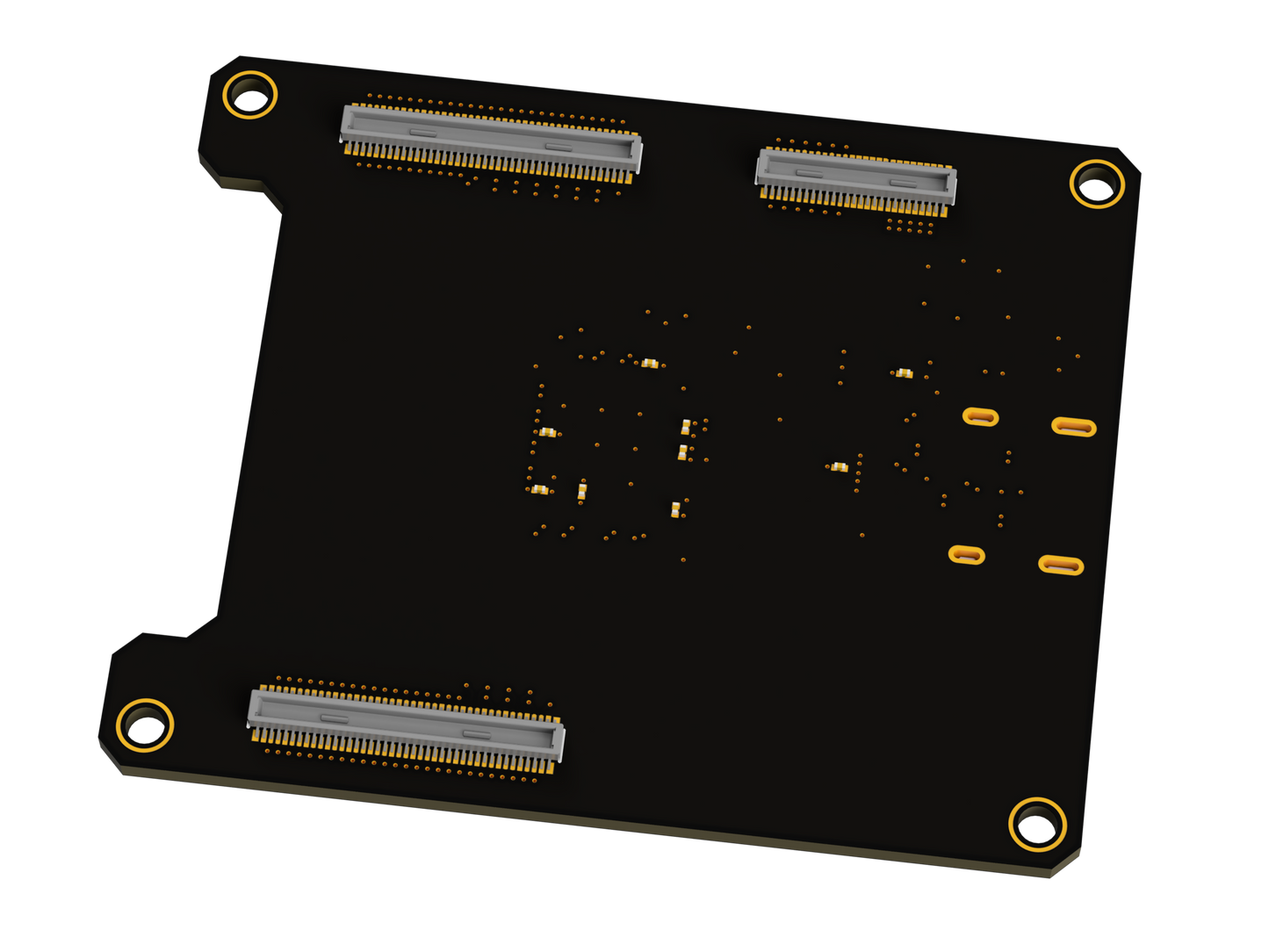

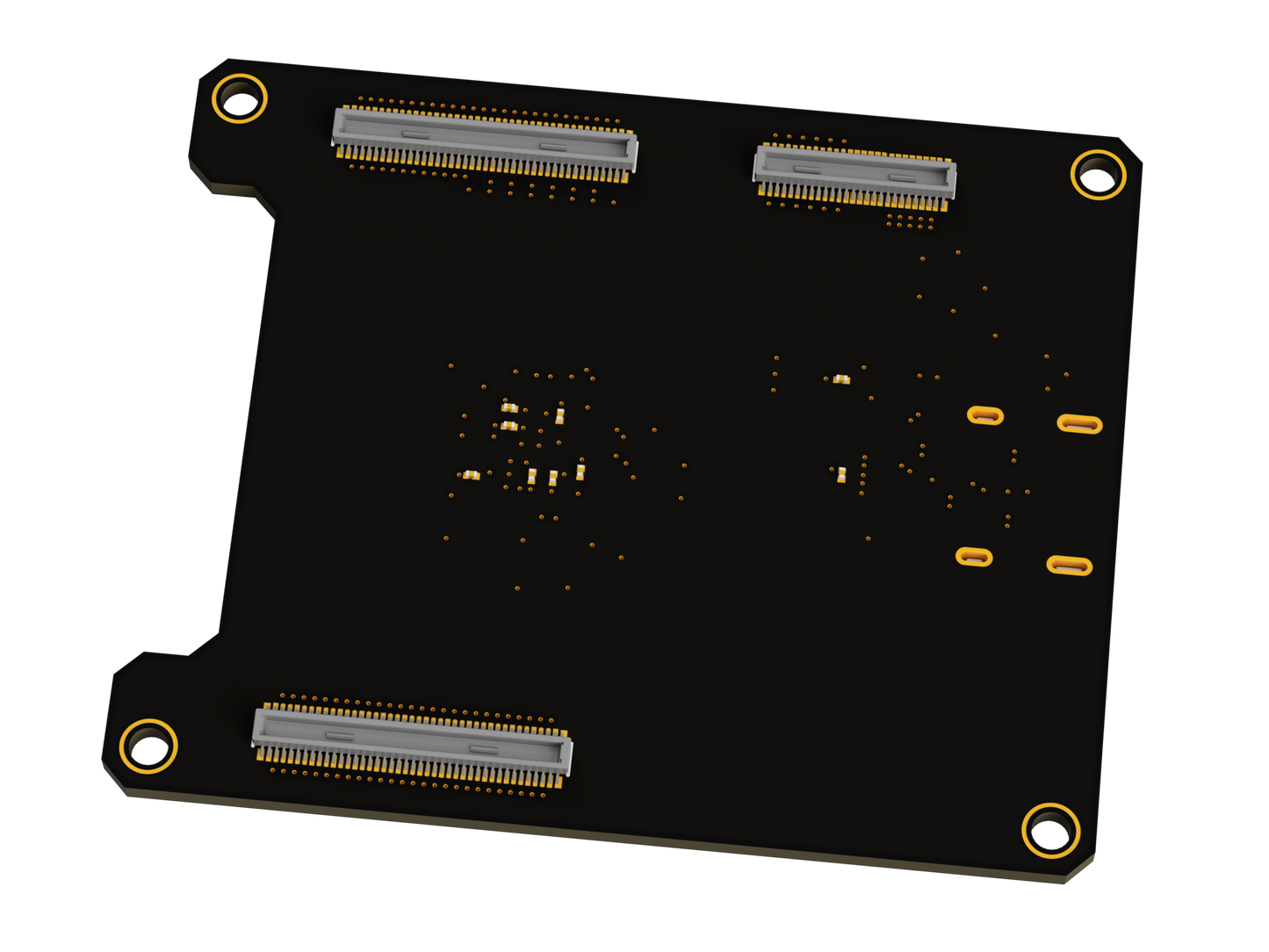

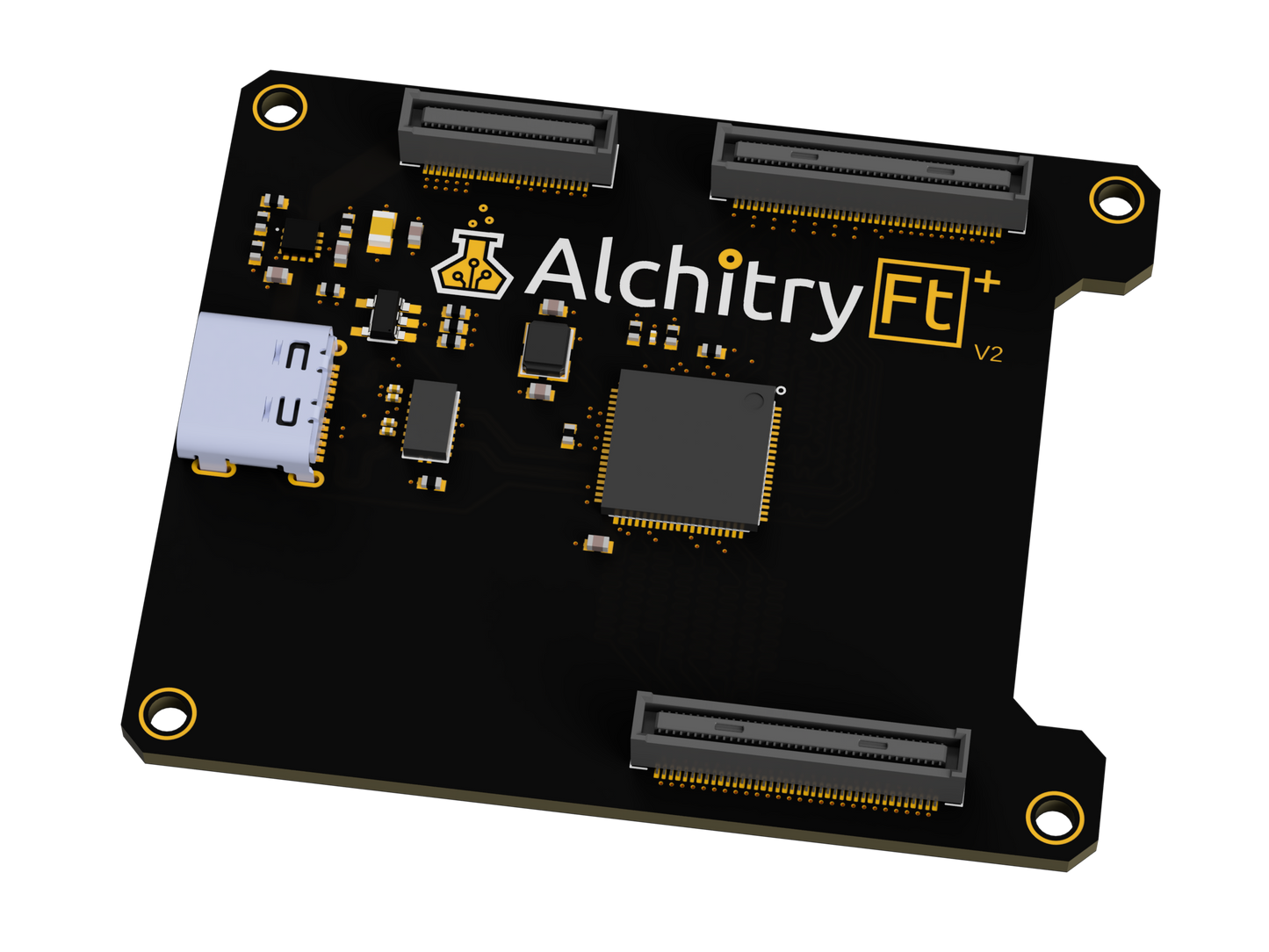

The Ft features the FT600Q which is capable of up to 200MB/s (that's bytes not bits). The Ft+ features the FT601Q which doubles that to 400MB/s at the cost of 18 more IO pins.

Real world bandwidth is a bit lower and we've been able to get about 190MB/s from the Ft and 350MB/s from the Ft+.

It is pin compatible with the Hd, but needs an Sp or other board between the two to fit the USB and micro HDMI cable (for port 1).

Documents

• Schematic (Ft)
• 3D Model (Ft, STEP)
• Schematic (Ft+)
• 3D Model (Ft+, STEP)
