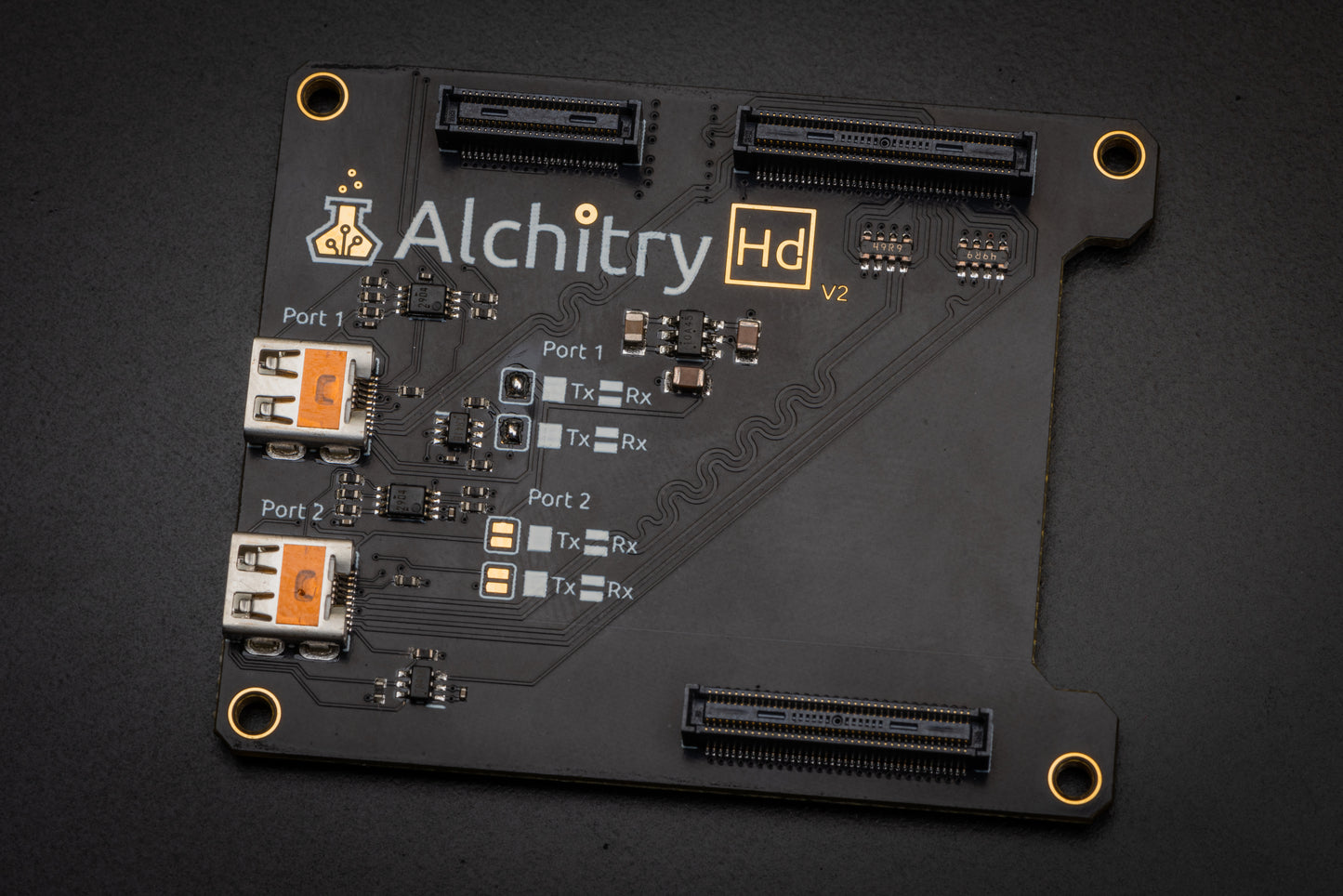

This board will add two micro HDMI ports to your Alchitry Au or Pt!

Each port will be configurable as a source or sink via solder jumpers.

The board will have a 5V boost converter and 5V<->3.3V IO level shifters for the I2C interfaces on the HDMI ports.

Development Stage

• Design (schematic creation and PCB layout)
• Prototype Build (part sourcing and ordering of initial prototype)
• Prototype Evaluation (prototype is in hand, design is being tested)
• Part Sourcing
• Initial Production Run

Documents

• Schematic

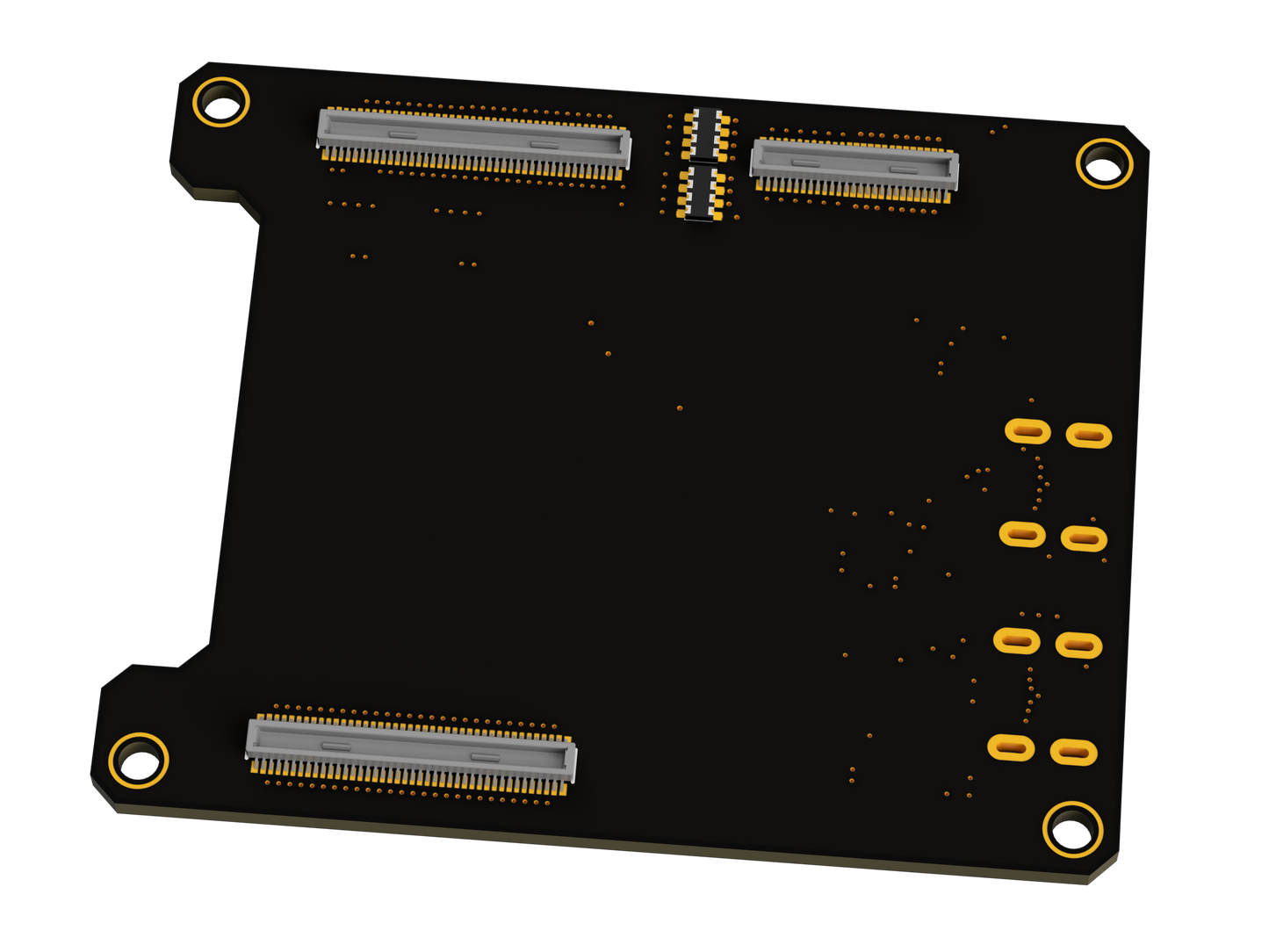

• 3D Model (STEP)
